Printing Tool for Research and Development
- Slot die coating and doctor blading with one device
- Printed solar cells and LEDs
- From lab scale to DIN A4 / letter size area
- Printing funtional films with precision down to the nanometer regime
- Coating speed 1 - 100 mm/s in 0.1 mm/s steps
- Useable with almost all available applicators
- Slot die coating heads and mounts + doctor blade with adjustable gap available
- Heated (vacuum) plate with up to 150 °C + slot die: heating operations for coating inks and heads
See also
Download Data Sheet

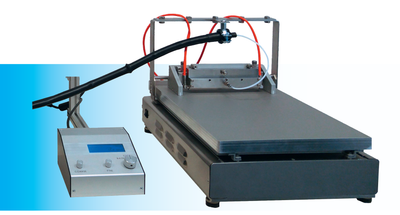

Thin Film Coater TFC200-400
The smart way to start your upscaling research

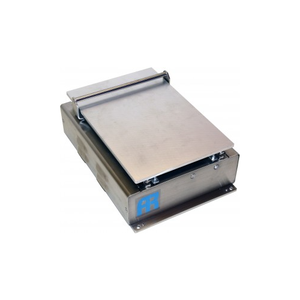

Size and Hotplate Options
| Art. No. | Description |
|---|---|
| TFC200 | Film appicator small 200×300 mm² |
| TFC300 | Film applicator middle 300×400 mm² |
| TFC400 | Film applicator large 400×500 mm² |
| TFCXXXH | With hot plate |
| TFCXXXVH | With vacuum hot plate and vacuum pump |

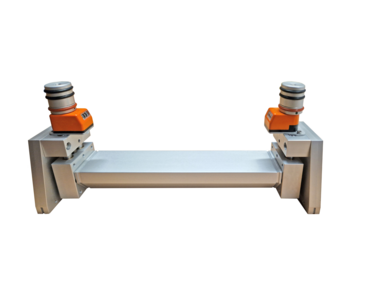

Adjustable Doctor Blades
Universal Applicator for doctor blading with adjustable height from 0-11 mm to suit a large range of substrates.
| Art. No. | Description |
|---|---|
| DB200 | Small – length 200mm |
| DB300 | Large – length 300mm |

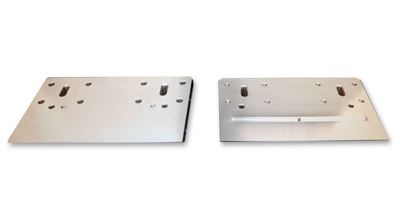

Slot-Die Applicators and Coating Heads
Key Features
- Transform a film applicator into a slot-die printer
- Height adjustment over more than 6 mm
- As bundle with slot-die head, syringe pump, pipe heaters and consumables starter kit or customized to hold your choice of slot-die heads
- Optional computer-controlled system with film applicator and syringe pump for highest reproducability
| Art. No. | Description |
|---|---|
| CS100 | Control system for the whole slot die coating process with software and PC |
| SA80 | Slot die applicator for 80 mm coating head |
| SC80 | Coating head 80 mm |
| SH80 | Heating system for coating head 80 mm incl. ink and pipe heater – 4 temperature controllers for individual heating |
| SA150 | Slot die applicator for 150 mm coating head |
| SC150 | Coating head 150 mm |
| SH150 | Heating system for coatig head 150 mm incl. ink and pipe heater – 4 temperature controllers for individual heating |
| SP10 | Syringe pump for up to 10 ml syringes |
| SP20 | Syringe pump for up to 20 ml syringes |
